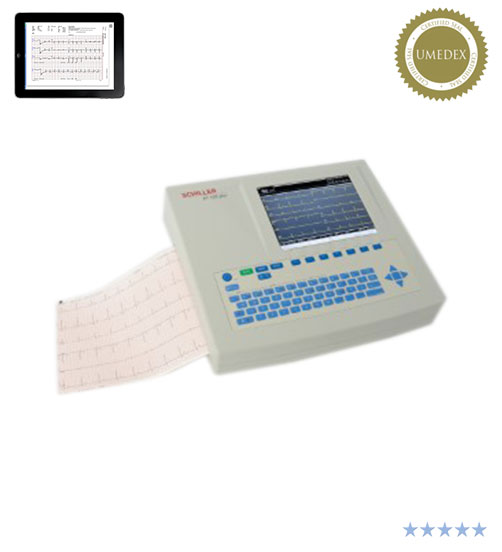

SCHILLER CARDIOVIT 12 - Channel Resting EKG Machine
AT-101
This compact 12-lead ECG is a high-tech device suitable for mobile diagnostic service providers, physician’s office, nursing facilities as well as hospitals.
AT-101 is fully integrated into UMEDEX platform with two-way communication between the ECG device and our secure Cloud. From accurate and complete data entries to comprehensive data fields that prompt users to collect required information, every detail of AT-101 is designed to streamline ECG testing.
Standard accessories include:
- EKG Paper
- EKG Electrodes
- Operators Manual
- Power Cord
- Patient Cable
- Alligator Clips
SCHILLER CARDIOVIT 12 - Channel Resting EKG Machine
AT-101
- Direct keys for the important functions.
- Easy Print: Integrated high-resolution thermal printer
- ECG measurement and preliminary interpretation software.
- Various user-programmable report formats on internal or external printer.
- Interfaced to UMEDEX cloud.
- Extended Storage and Sharing. Store data up to 10 years and share it with your physician, caregivers and family members.
- 3 Year Limited Warranty
SCHILLER CARDIOVIT 12 - Channel Resting EKG Machine
AT-101
- 12 lead /10-leadwire simultaneous acquisition with programmable lead configuration
- Thrombolysis
- Two-way communication with UMEDEX secure cloud
- SCHILLER ECG interpretation software C, incl. adult/pediatric algorithm
- SCHILLER ECG measurement software M, incl. average complexes and measurement markers and detailed measurement results table
- 3-channel ECG high-resolution LCD 76 x 57 mm display area (320px x 240px)
- Memory for approximately 40 ECG recordings
- Enhanced Pacemaker Detection
- Built-in High-resolution thermal 3.5" strip printer
- Alphanumeric keyboard with rubber keys
- Battery lasts for up to 6 hours in stand-by mode or 3 hours of constant use (up to 20 recordings with printout)
- Printout on 80 mm wide thermal z-folded strip paper or on external full size printer (8½” x 11” chart paper)
- Optional: LAN/Wired Transmission and/or Modem (Part No 5.080010 or 5.080011)
- Filters: Myogram filter (muscle tremor filter): 25 Hz or 35 Hz, can be switched on/off (SCHILLER Power line Filter SPF, SCHILLER Baseline Stabilizer SBS , SCHILLER Smoothing Filter SSF)
Click here to download Datasheet.
